Acceptance Detector

Yaisu Intelligent Oil and Gas Pipeline Acceptance and Testing System | API 5L/ASME B31.8 Compliance Certification | 0.02mm Weld Defect Detection

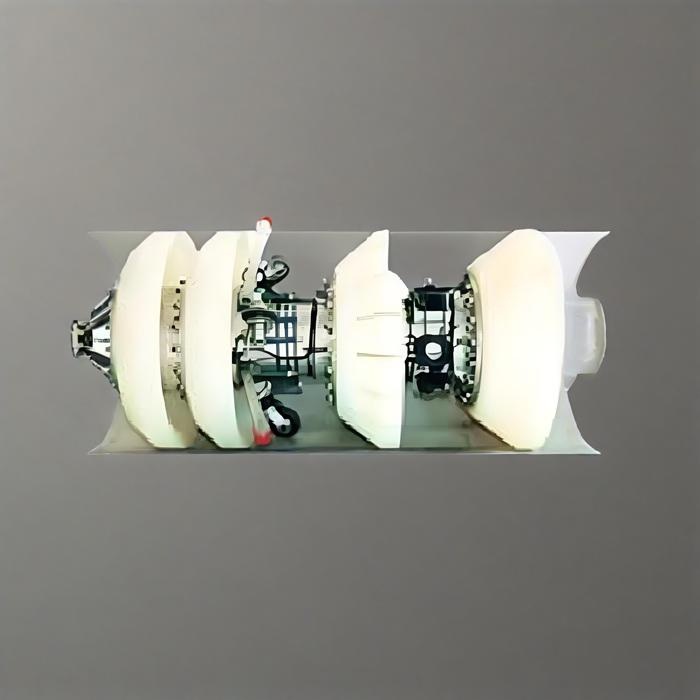

Acceptance Detector

▲Yaisu can provide high-performance full caliber pipeline

internal detectors and supporting intelligent data analysis software

▲The technical indicators have reached the international advanced level

Intelligent Internal Detection Hardware Product Series

Caliber(mm)(inch)	Deformation detector	Ultra high definition three-axis magnetic flux leakage detector	Acceptance detector
159-355 6in-14in
406-508 16in-20in
610-711 24in-28in
813-1219 32in-48in

Technical principle:

Multimodal sensing array

16 line LiDAR scanning pipeline ellipticity (sampling rate 1MHz)

Electromagnetic ultrasonic probe for detecting weld defects (minimum detection size 0.5mm)

Digital twin verification

Automatic alignment of point cloud data with design drawings (ICP algorithm error<1mm)

Product features:

Extreme environment adaptation: stable operation at -40 ℃~85 ℃ (IP68 protection)

Regulatory Compliance: Pre installed API 5L/ASME B31.8/GB 50251 Acceptance Template

Mobile management: Real time viewing of defect heat maps through explosion-proof tablets

Application scenarios:

Long distance pipeline: The cleaning device has passed the capability acceptance (curvature radius ≥ 3D)

Station process pipeline: post weld heat treatment deformation detection

Subsea pipeline: Verification of counterweight layer thickness (± 2mm accuracy)

Get exclusive solution now: +86 18901245777/ yaisu@aliyun.com
